MTB011 Mini PC Intel i7‑1165G7 Aluminum Chassis Dual Storage Bay Business Industrial Mini PC

MTB011 High‑Performance Mini PC｜Compact Body with Powerful Expandability

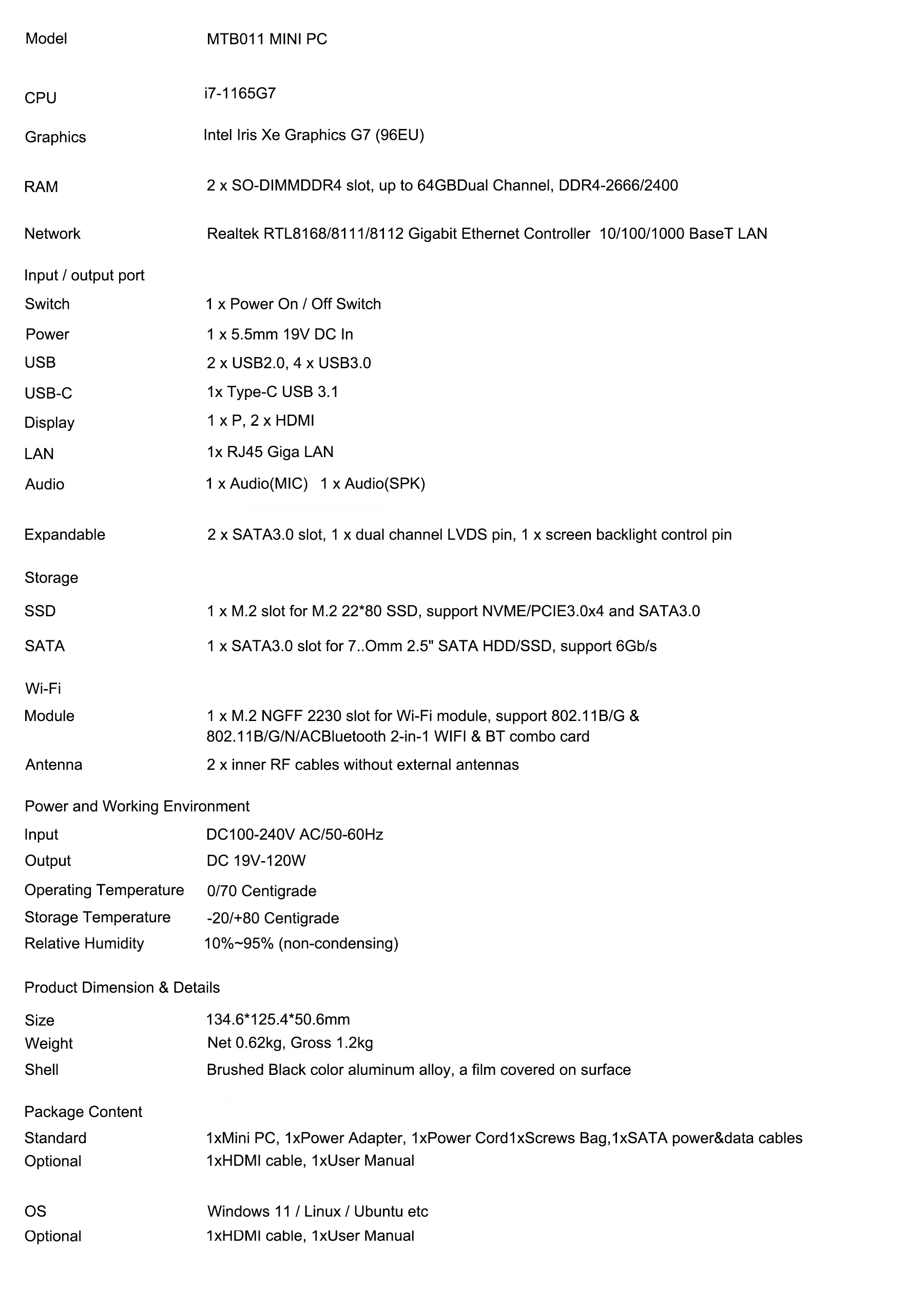

The MTB011 Mini PC is a compact computing device balancing solid performance and rich expandability. Powered by Intel Core i7‑1165G7 processor with integrated Intel Iris Xe Graphics G7 (96EU), it handles business office work, content creation, media playback and light‑duty image processing efficiently. It is an ideal solution for office use, home entertainment, digital signage and light industrial control applications.

It features dual SO‑DIMM DDR4 slots, supporting up to 64GB dual‑channel DDR4‑2666/2400 memory for smooth multitasking. For storage, it comes with an M.2 2280 SSD slot supporting NVME / PCIE3.0×4 and SATA3.0, plus a 2.5‑inch SATA3.0 bay for SSD or HDD. You can freely build your storage setup for large‑capacity file storage.

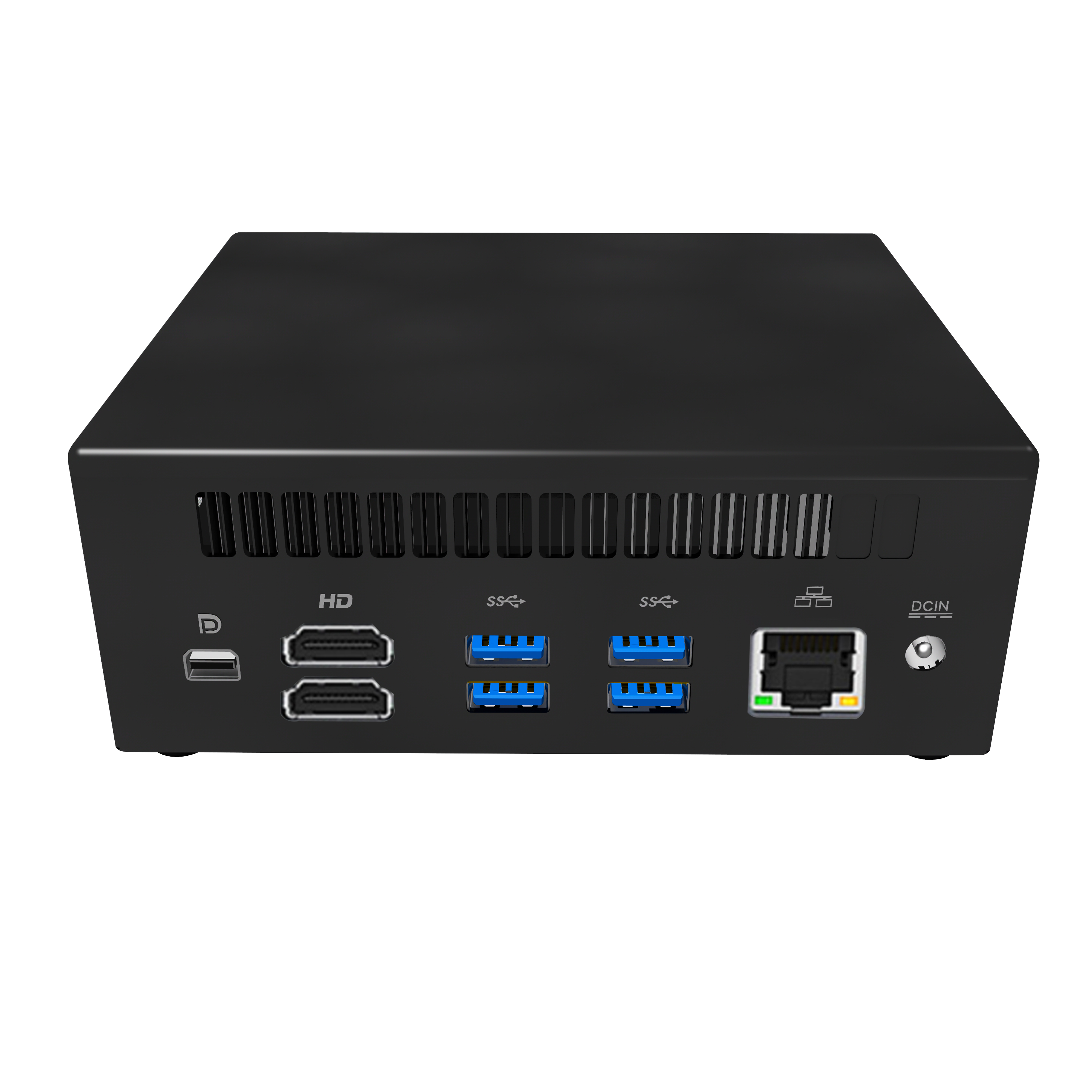

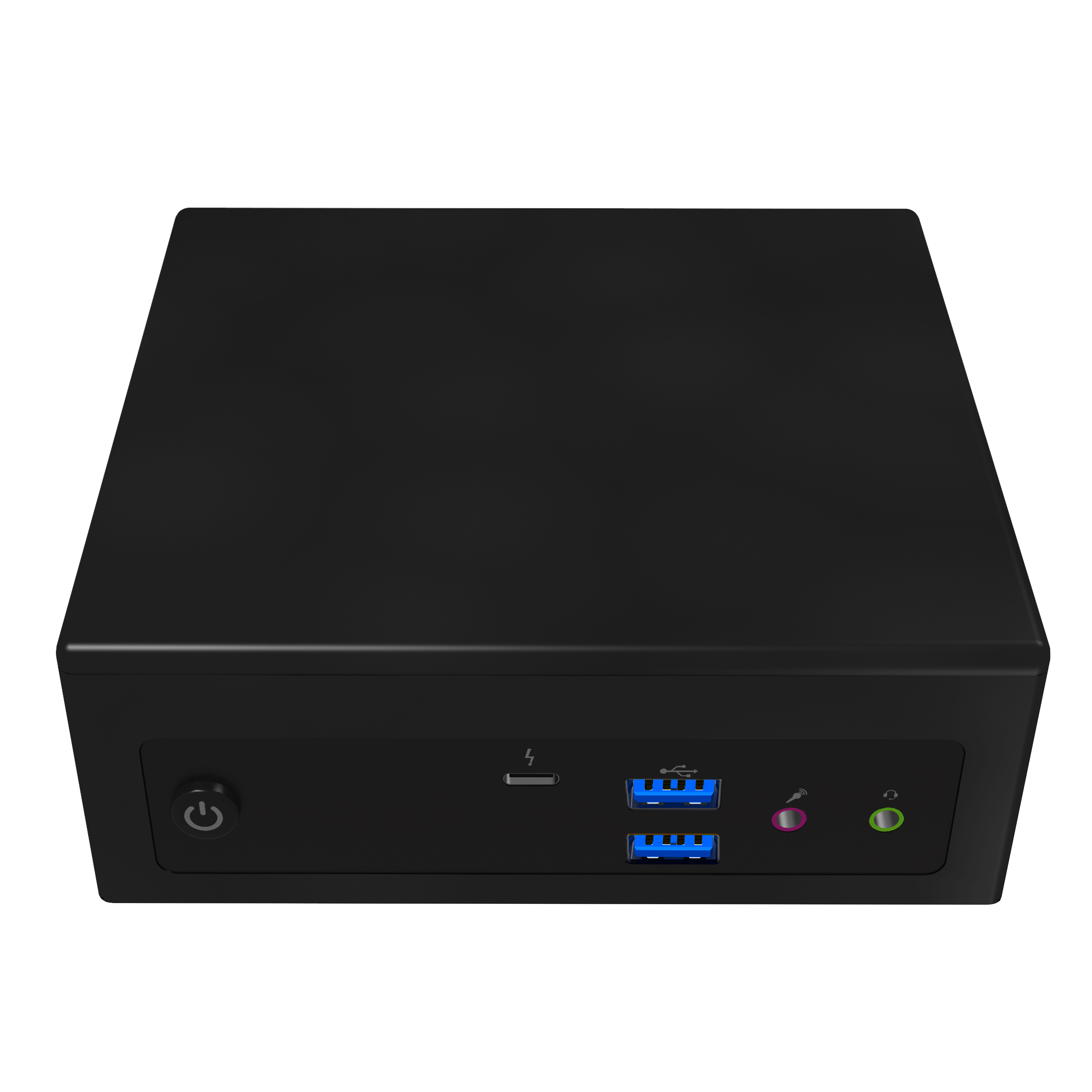

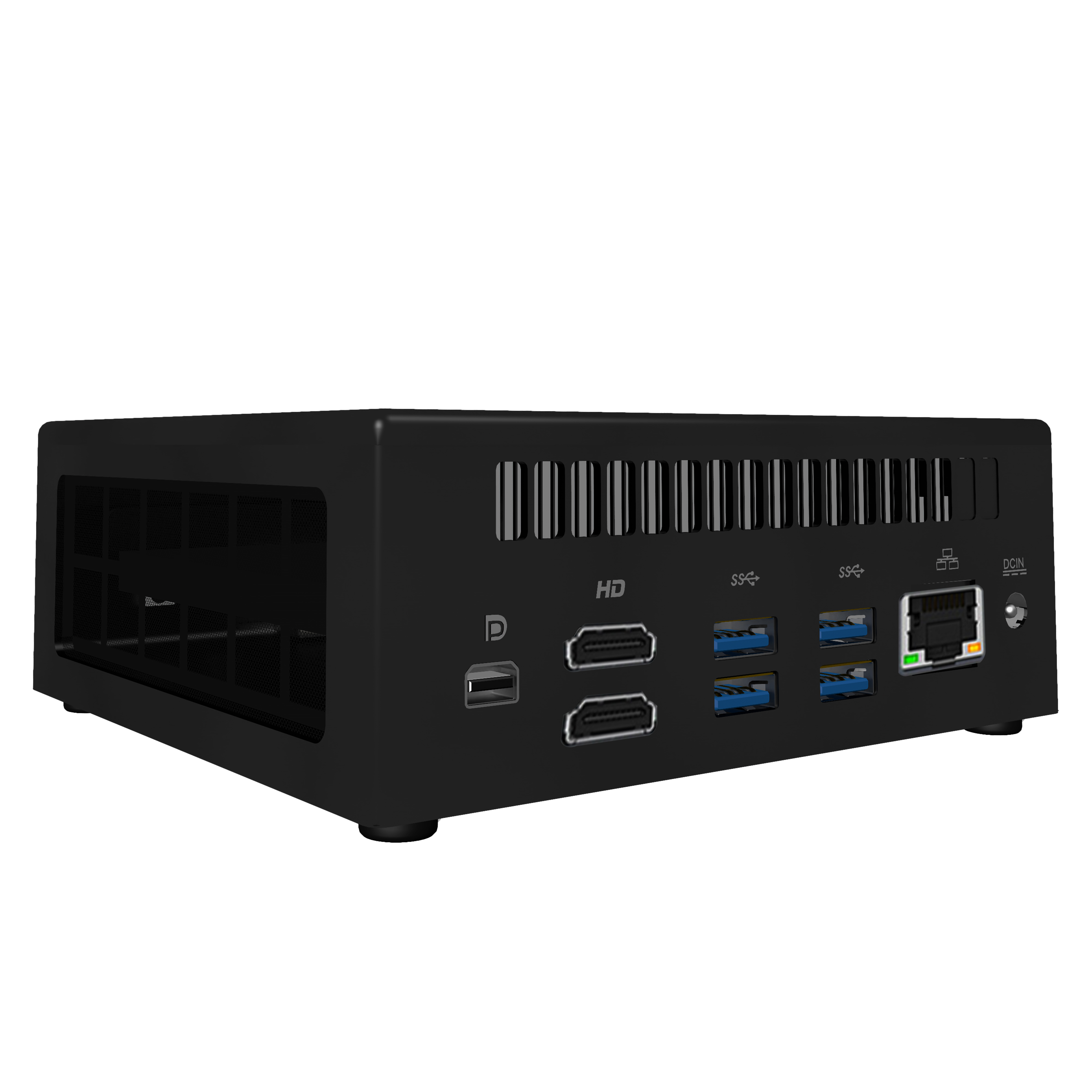

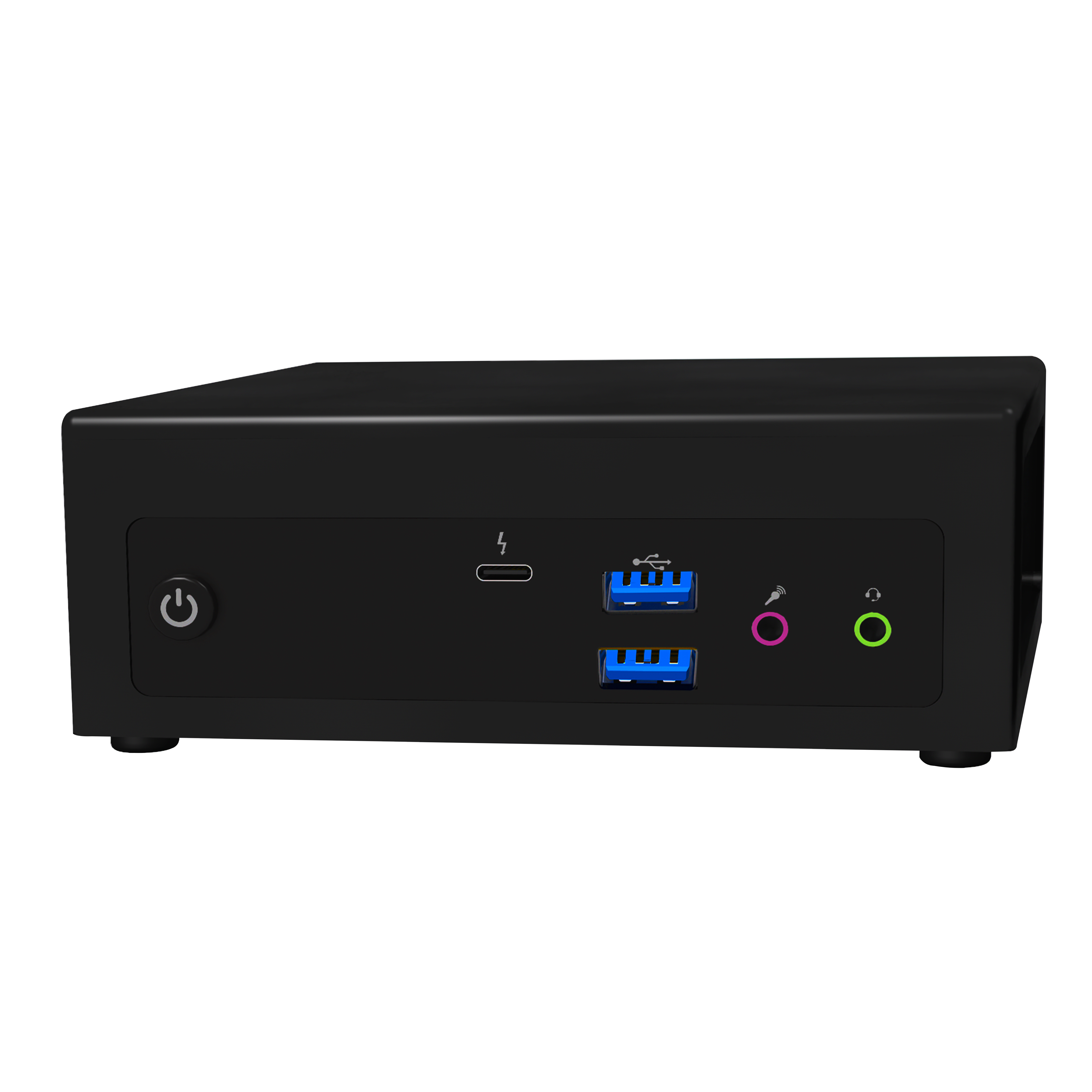

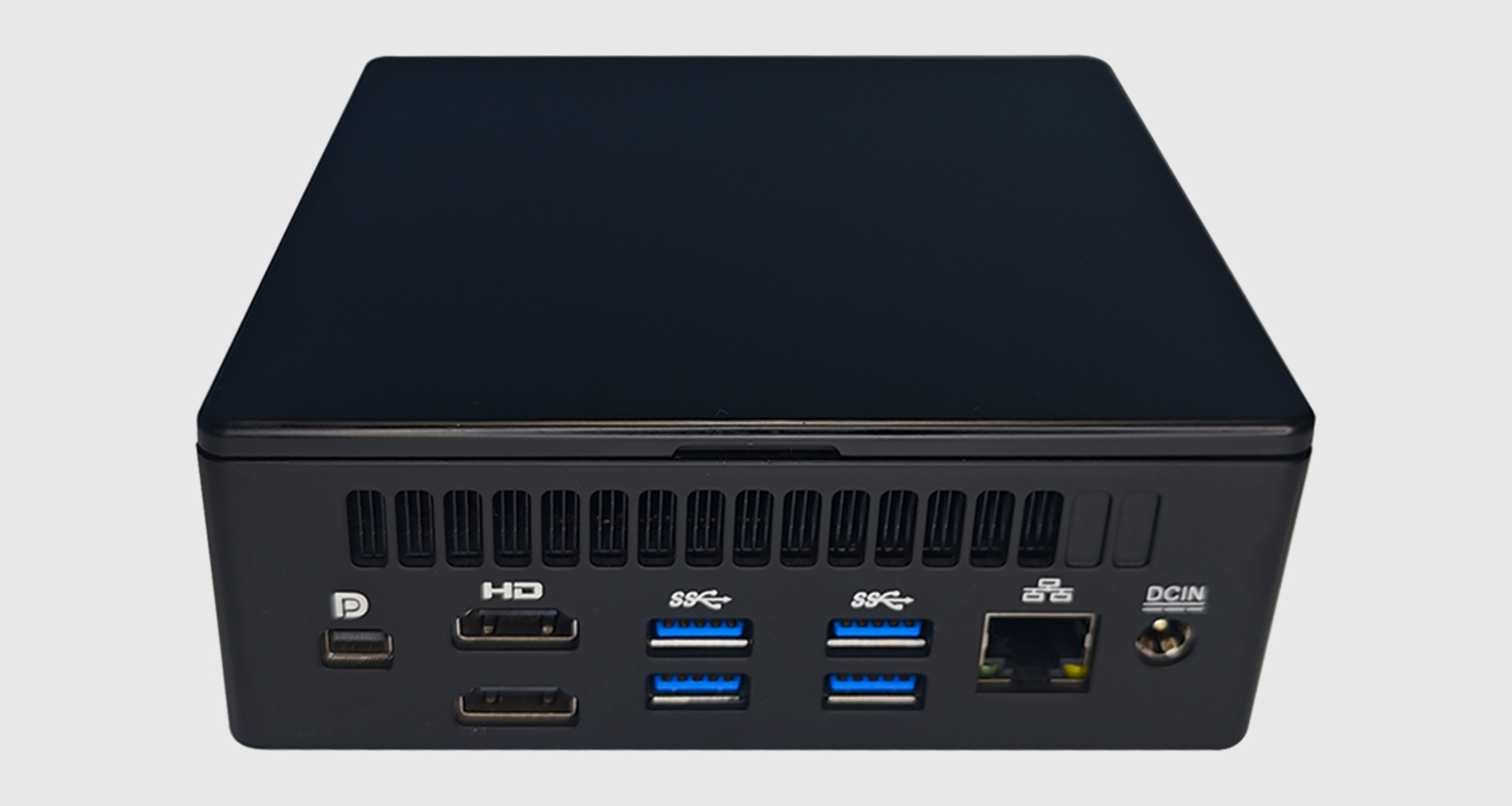

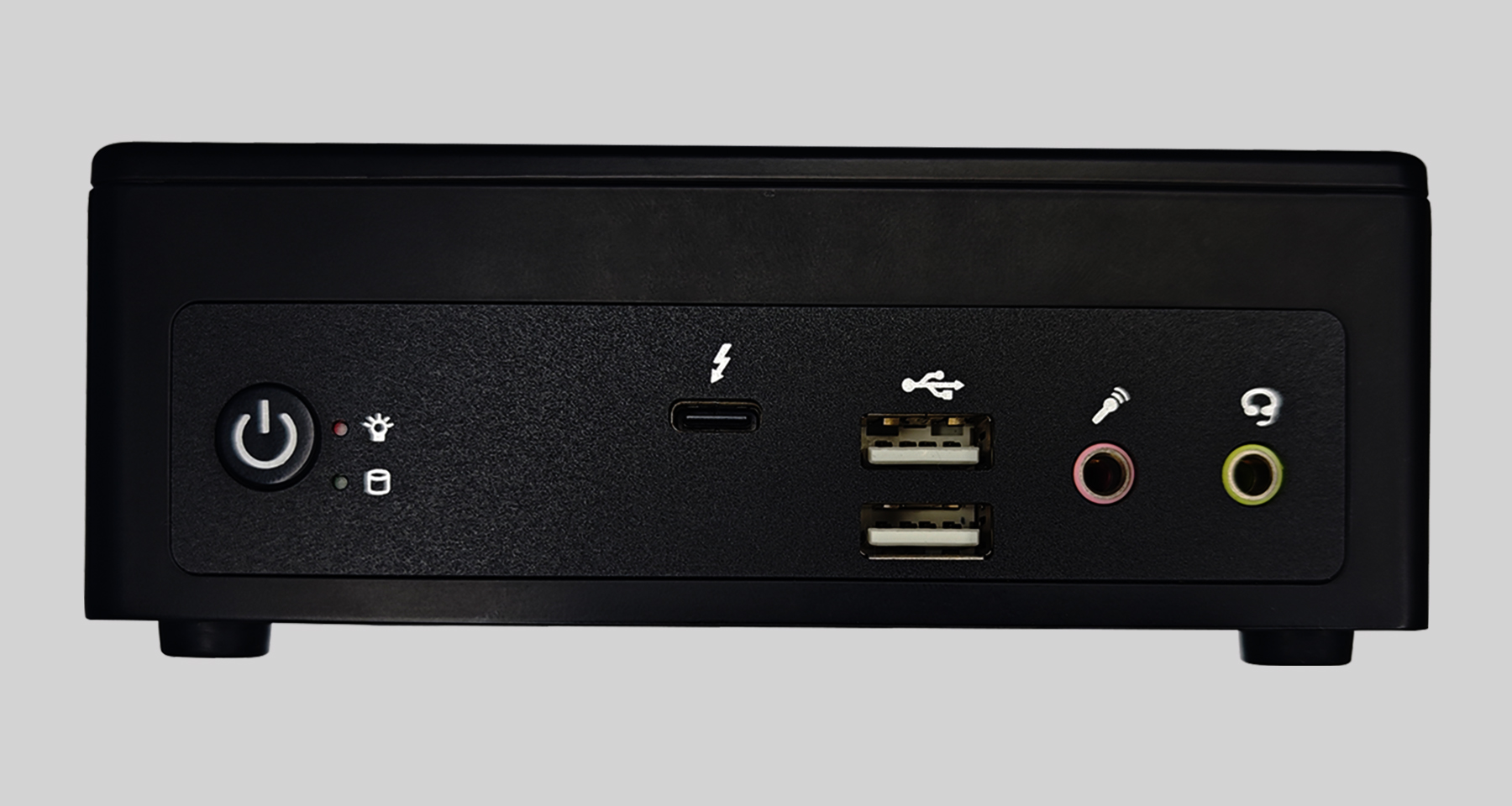

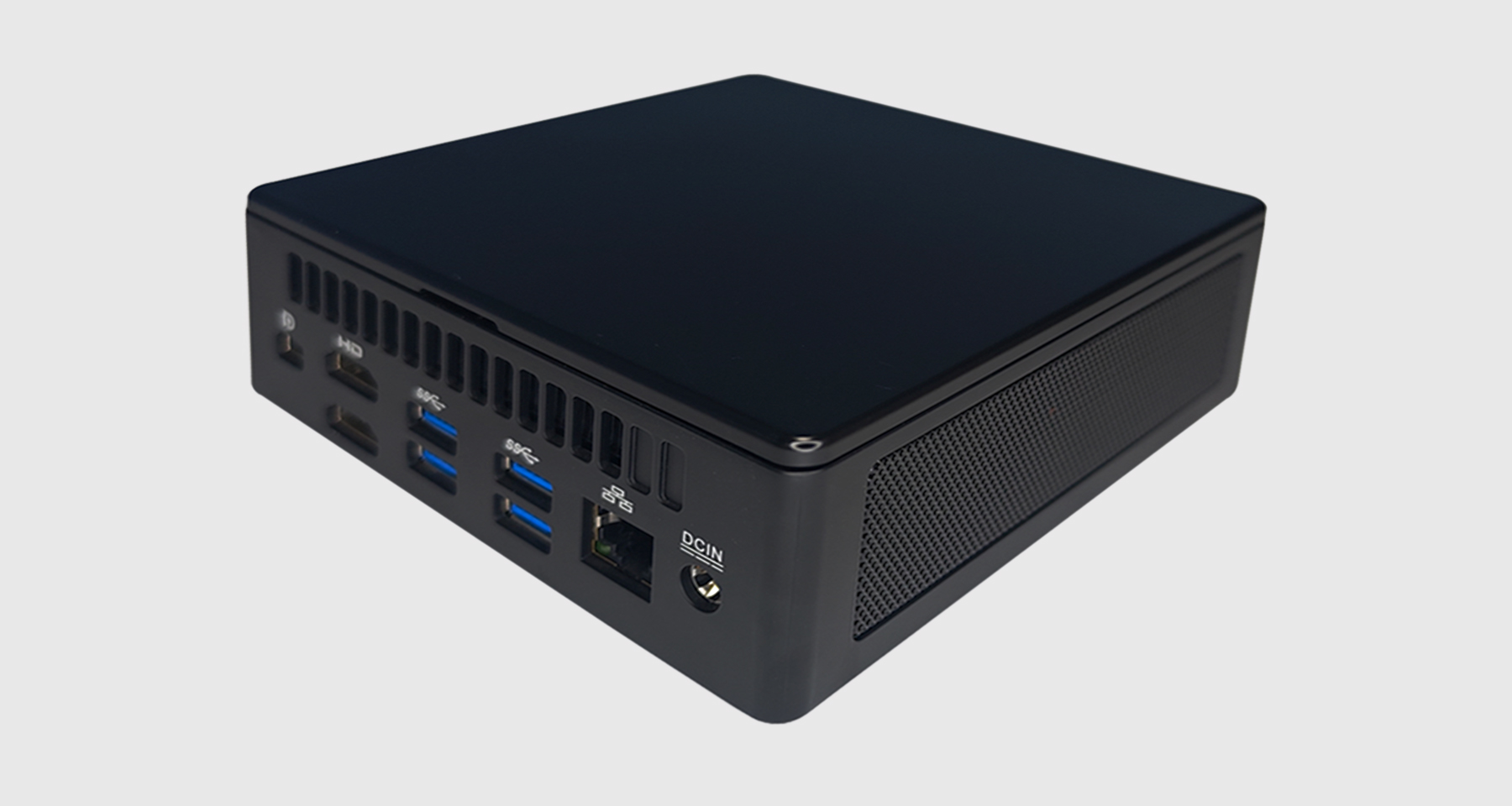

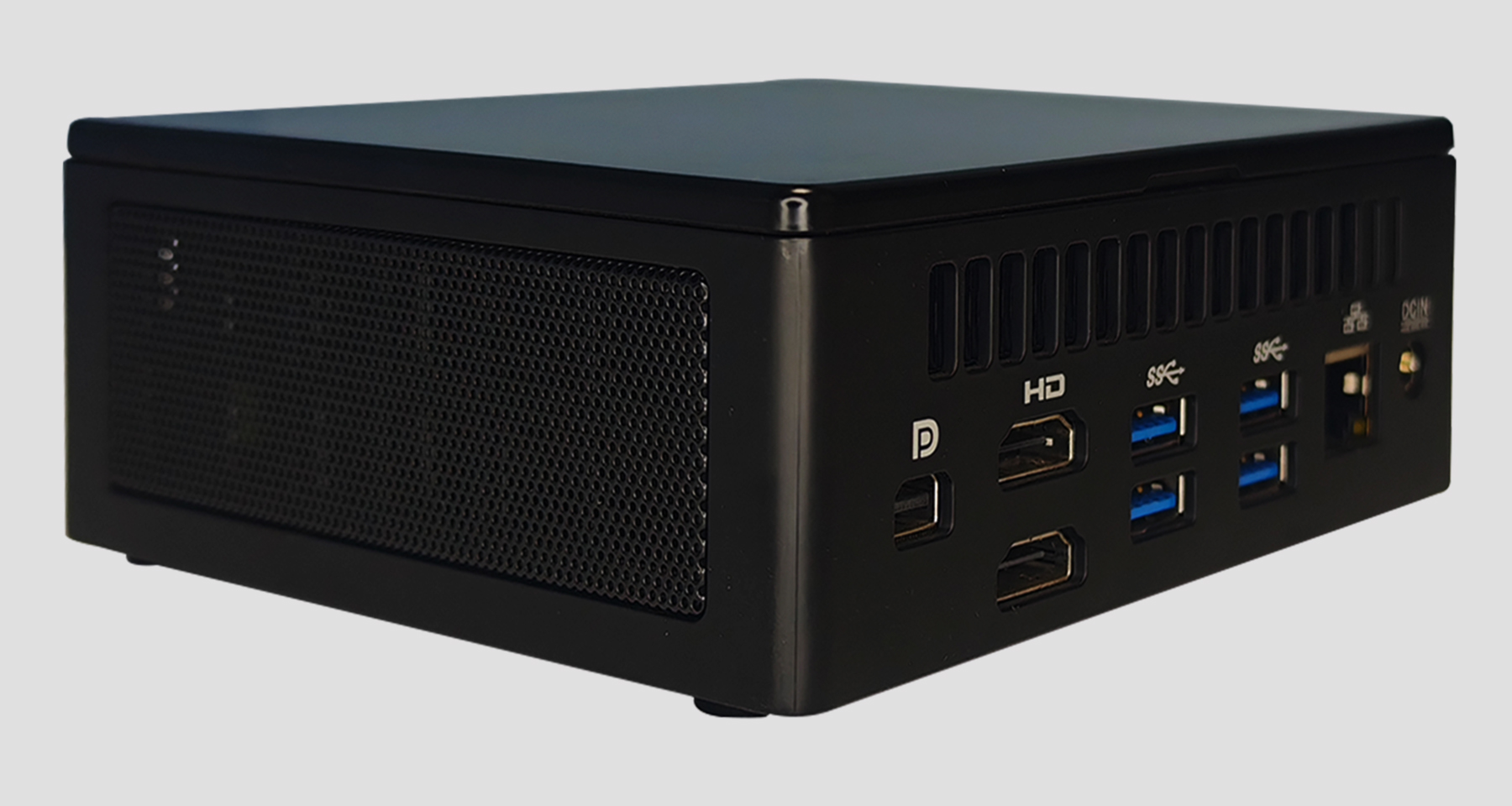

Rich I/O ports are available: 2×USB2.0, 4×USB3.0, 1×Type‑C USB3.1, 1×DP and 2×HDMI for multi‑display output. The Gigabit RJ45 LAN port delivers stable wired network connection. Audio‑in and audio‑out ports support microphone and speaker connection. There is an M.2 NGFF 2230 slot for 2‑in‑1 WiFi & Bluetooth combo card for wireless connectivity.

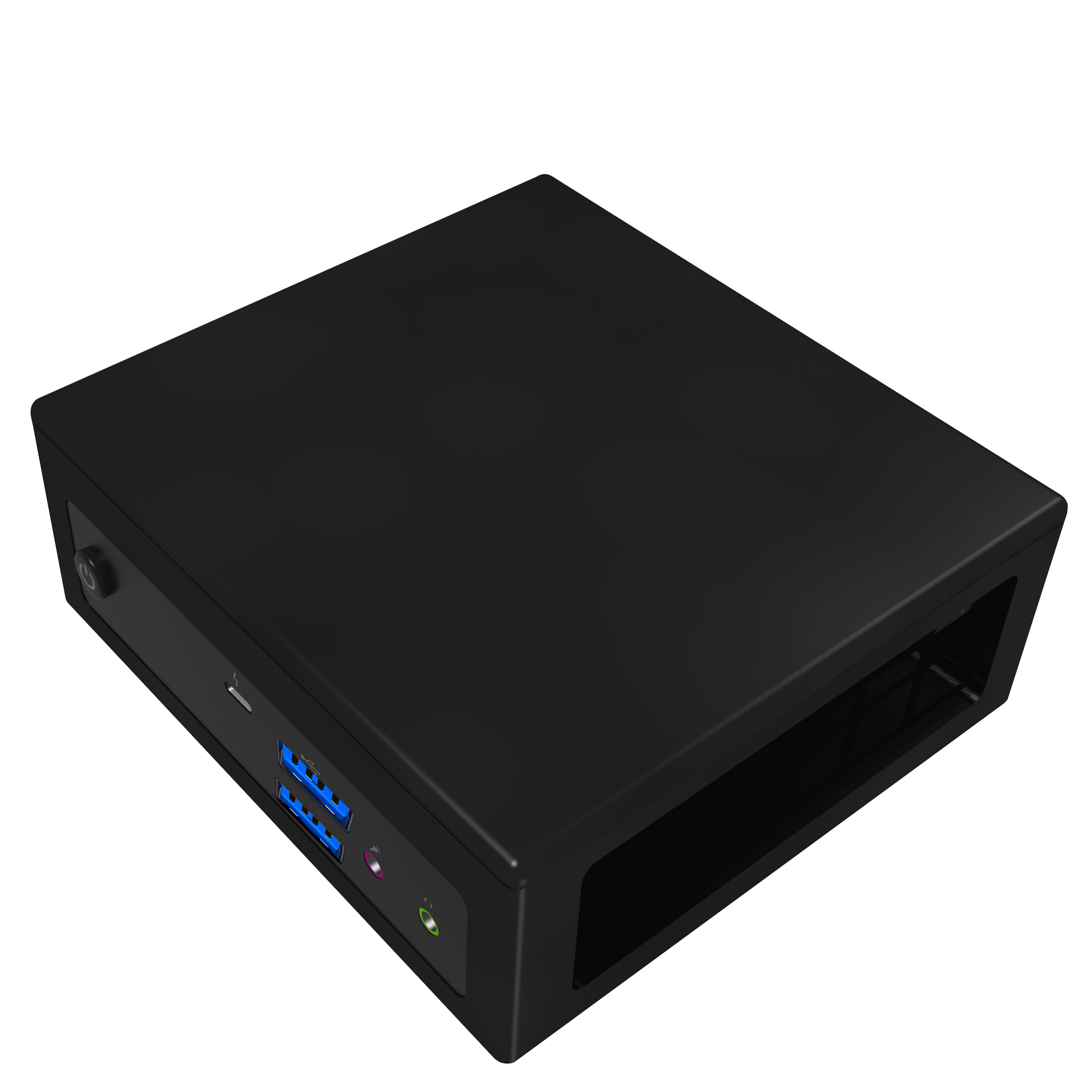

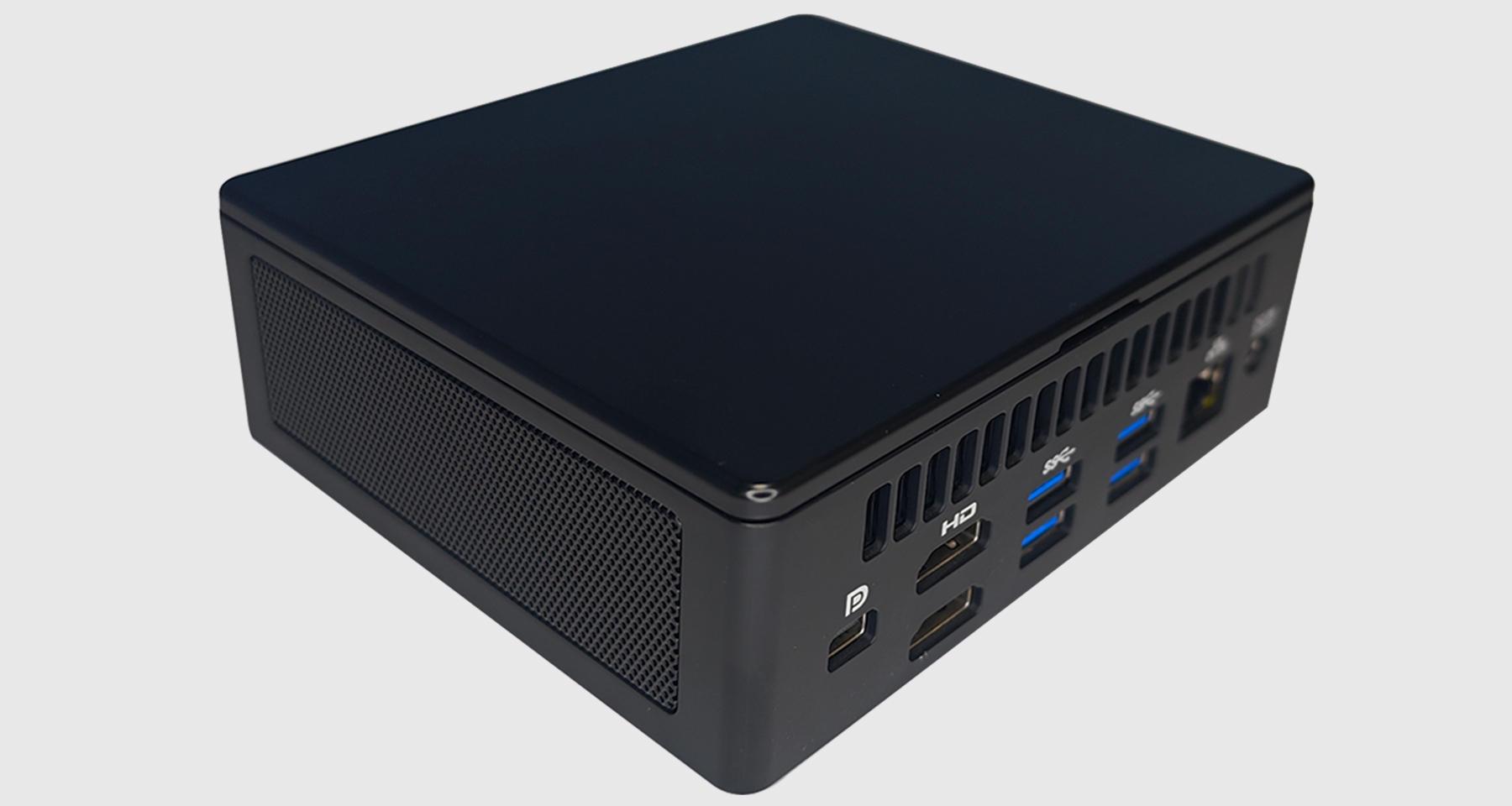

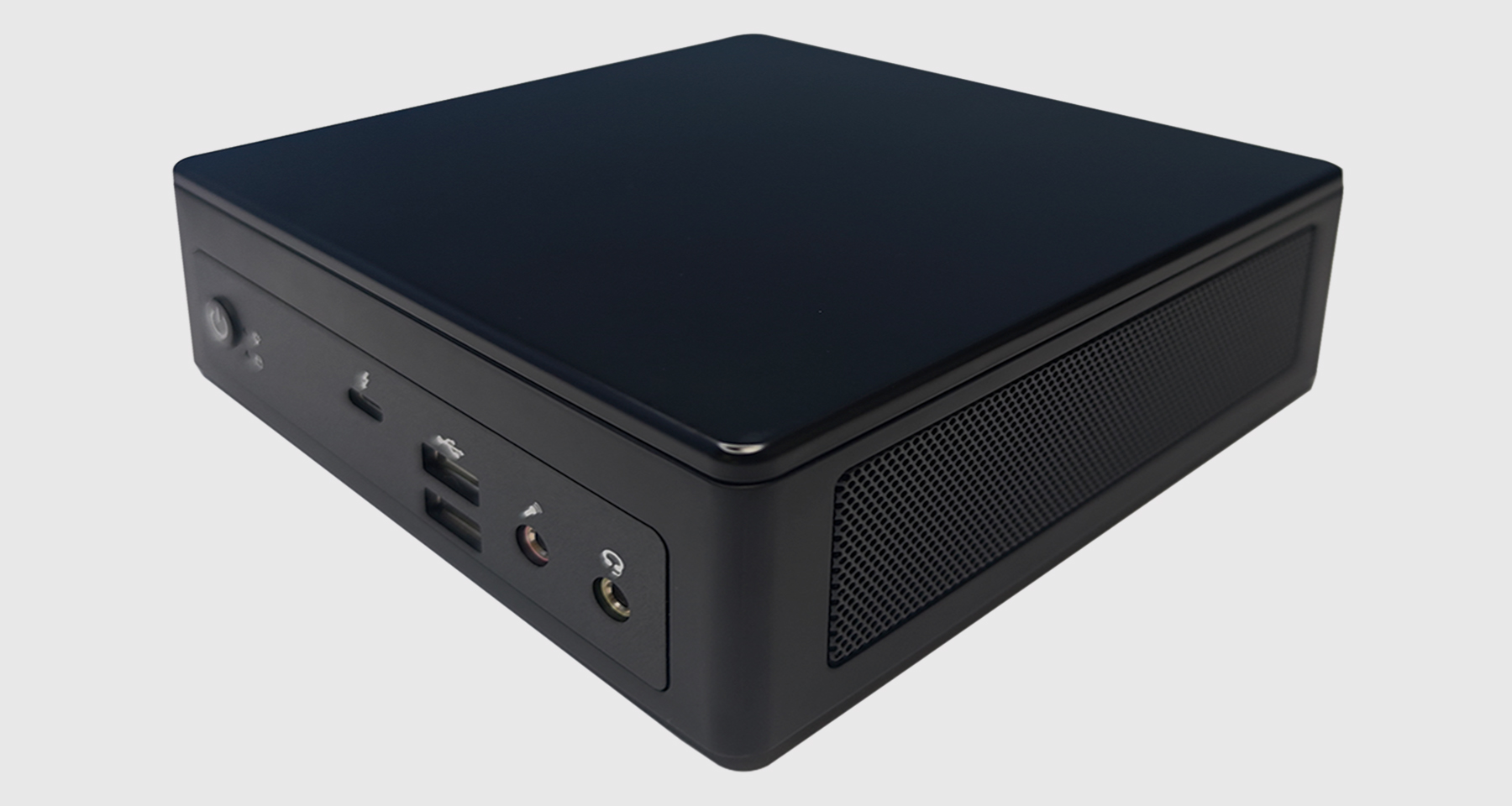

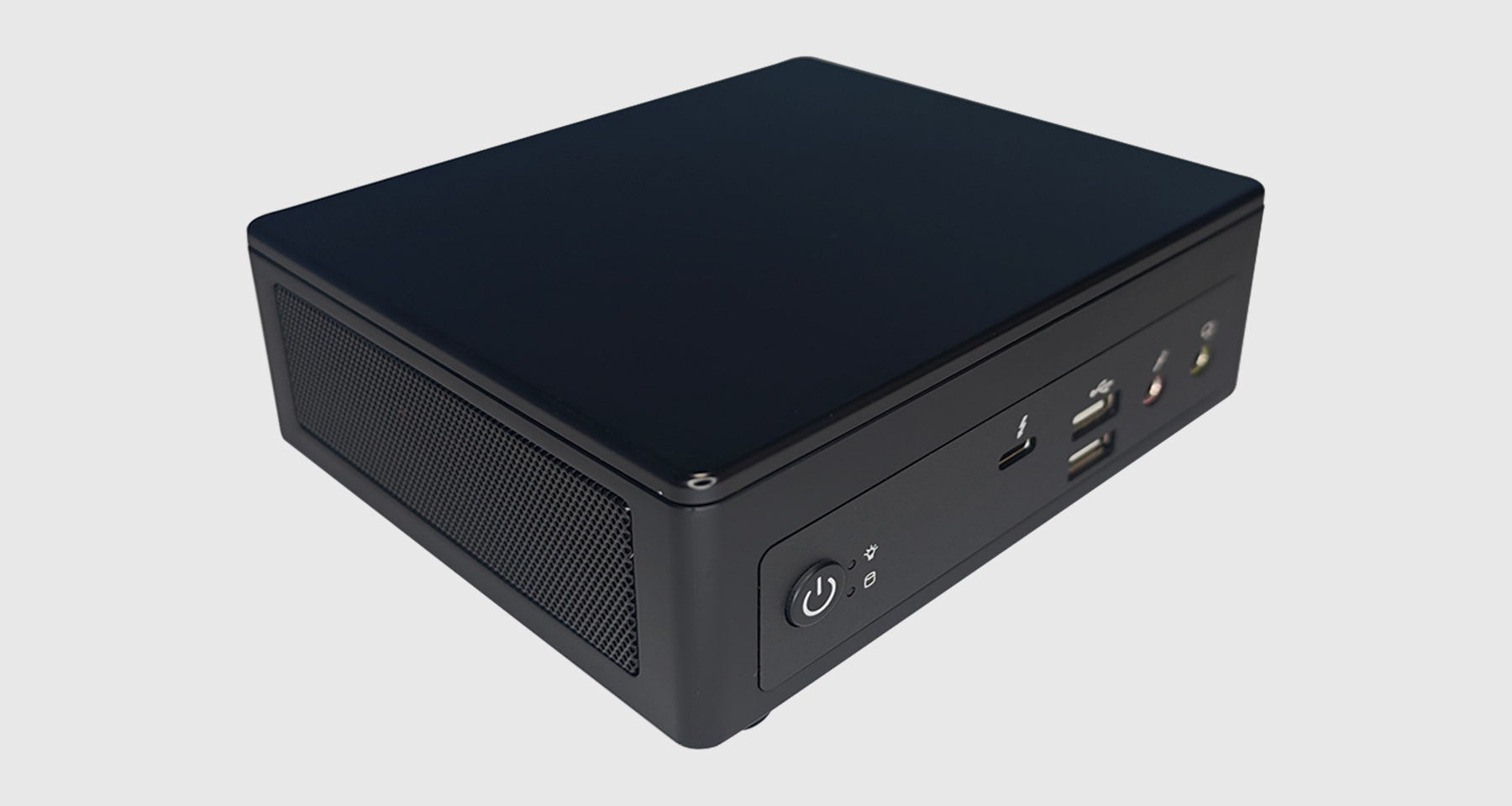

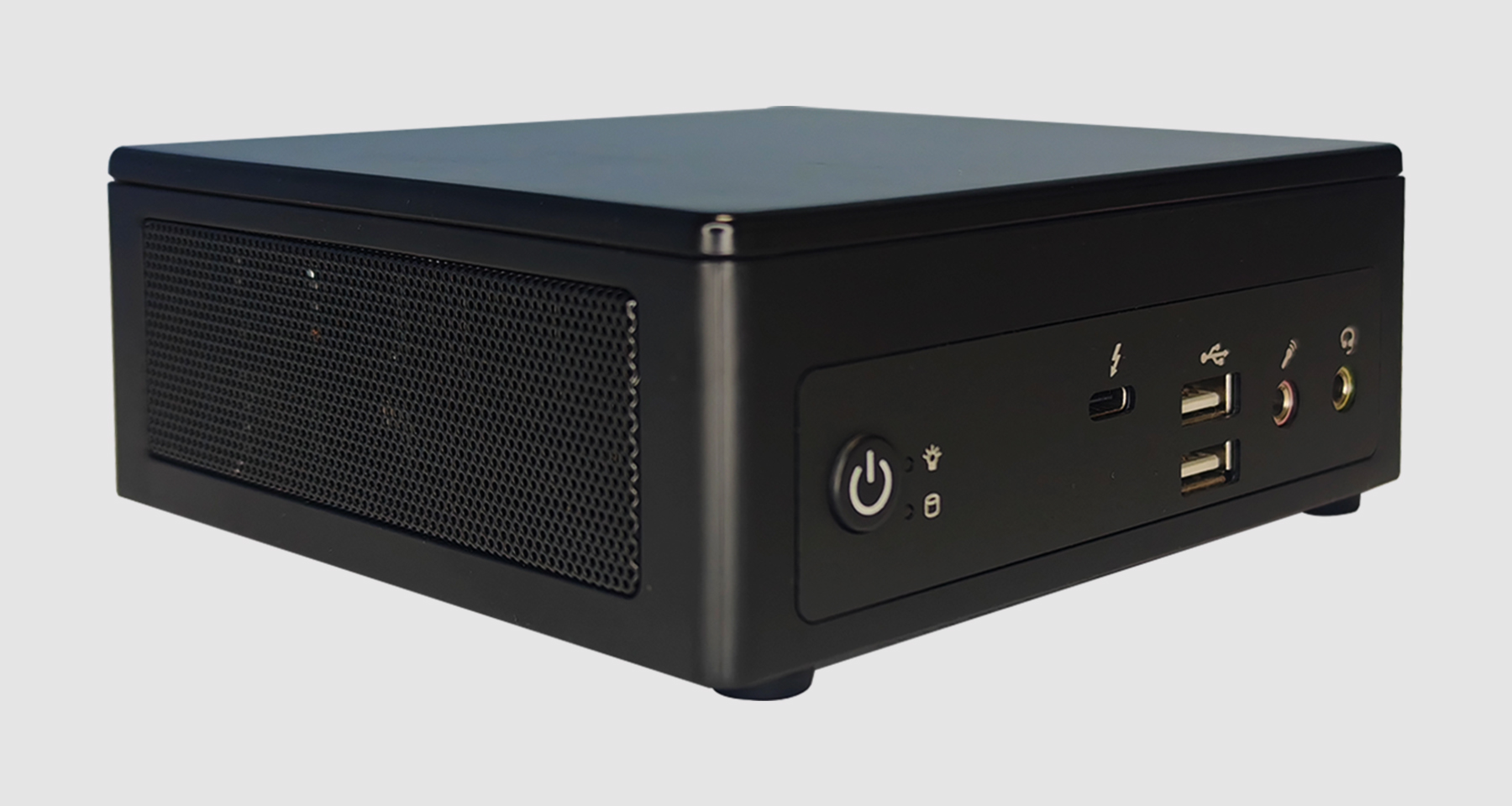

Built with brushed black aluminum alloy shell, the mini PC measures 134.6*125.4*50.6mm with net weight of 0.62kg, saving valuable desktop space. Designed for wide‑range operation: operating temperature 0‑70℃, storage temperature ‑20‑+80℃, relative humidity 10%‑95% (non‑condensing), it works reliably under diverse working conditions. It supports Windows 11, Linux, Ubuntu and other operating systems.

As original manufacturer, we support OEM & ODM customization. Hardware configuration can be adjusted for bulk orders and industry projects. Standard package includes mini PC, power adapter, power cord, screw bag, SATA power & data cables. HDMI cable and user manual are optional accessories.
